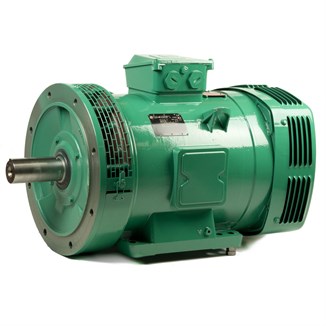

Leroy Somer AC Motor 132kW
As a member of the Nidec Group, Leroy-Somer has developed a long-term growth strategy backed up by the resources and synergies offered by a large international group. With its 10,000-strong workforce, Leroy-Somer has created an international network of 470 centres of expertise and service centres capable of offering you the sales support and technical assistance you need, 24 hours a day, 7 days a week throughout the world.
AC Motor Part Number PLSES280MD
- Motor Power - 132kW
- Frame Size - 280MD
- Rated speed - 2 Pole 3000rpm
- B35 Foot Flange
Specifications of the Leroy Somer AC Motor include:-
- IE2/IE3 Certified Efficiency
- Aluminium or Steel Construction
- 1 x PTC Thermistors as Standard
- Oil Seals fitted to Drive and Non Drive Ends
- Foot or Foot/Flange Mounting
- Voltage 380 – 415-460 Volts
- Phase 50/60 Hz Supply
- Enclosure IP23 IK08
- Drip Proof Enclosure
- Class F Insulation
- Class B Temp Rise
- Locked Bearings
- Lifting lugs on larger sizes
- High Quality Paint System used
- Bearings from SKF, FAG, NSK and NTN
- Large Terminal Box for Easy Connection
