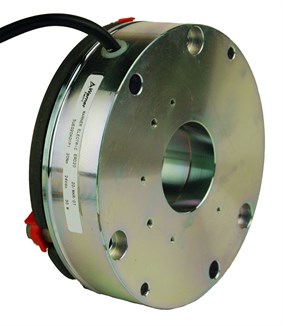

Warner ERD, Size 35, VAR00 Fixed Torque, 35Nm, 24v, Pilot Bore, Spring Applied Brake with Mounting Flange.
Warner Electric’s ERD series spring set, electrically released brakes are designed to hold a load when the power to the brake is off. ERD brakes are offered in eight different sizes.
Brake options include:
Manual release handle (please call for details), dust cover (please call for details), and thin or thick friction flanges. A friction flange is to be mounted to the back of the brake on applications where the mounting surface is not suitable for use as a friction surface for repeated stopping and holding. The manual release handle offers the operator the ability for controlled load release without energizing the electrical coil.
This particular brake from Warner comprises of:
24v Stator, Pilot Bore Hub, Metal Rotor, Thin Friction Plate, Long Assembly Kit.
- Braking torque: 35Nm
- DC voltages: 24v
- Maximum ambient temperature is 104° F
- Braking torque can be reduced (VAR00 Fixed Torque)
- Manual release (Please call for details)
Brake motors, cranes, warehousing, wood working machines, industrial trucks, stage machinery, vehicles for the disabled and escalators.
If your application requires a different bore size, please call us, as we carry a variety of bored hubs in stock.
