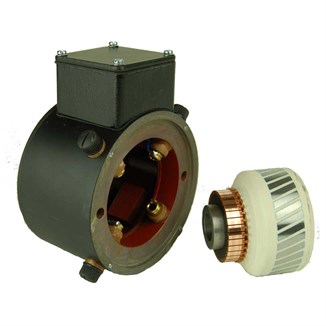

Radio Energie RDC14 MF 0.02 CA 160 20V Hollow Bore Tachogenerator
To Suit 16mm diameter shaft
CA grade brushes, 7,500 rpm max speed
Expanding device to clamp on shaft
Radio Energie Part Number /0000048
DC Tachogenerators are used as speed monitoring devices, they convert rotating movement (RPM) into a proportional DC voltage with almost nil propagation delay and have no need for an energy supply.
They are most often used when mounted on to the back of a DC Motor and supply the connected DC drive with a voltage that is linear to speed typically expressed as a voltage against speed e.g. 40V/1000RPM.
Transdrive are the Main UK Distributor for Radio-Energie Tachogenerators, (Tachos), which was founded in 1928 to produce electric generators and convertors to supply power to radio telephonic and radio telegraphic receivers and transmitters; hence its name. In 1949 Radio-Energie started to produce Tachogenerators for industry and have produced a wide range of high quality and reliable units ever since.
These are no longer "UL" or "CSA" approved.
Main characteristics of the RDC14 MF 0.02 CA 160 20V Hollow Bore Tachogenerator from Precilec
- 40V/1000rpm output
- CA grade brushes, 10,000 rpm max speed
- Expanding device to clamp onto shaft
- Hollow Bore mounting to suit 16mm dia shaft
- Almost maintenance free (periodic check of brushes required)
- Wide speed range
- Long life brushes
- Direction of rotation indicated by polarity of voltage output
- External power source not required
