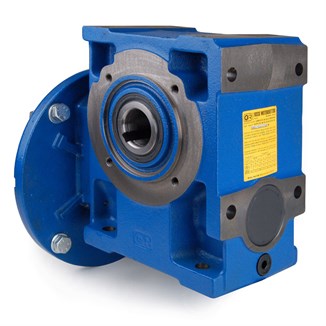

Habasit Rossi MRV80 gearbox

Type Right Angle Hollow Shaft(worm gear)

Ratio 10:1

Output speed 140rpm at 1400rpm input speed (4 pole)

Input to suit IEC D90 motor

Suitable for powers 1.1kW; 1.5kW; 2.2kW; (3kW non-standard high output

The largest standard motor that will fit this gearbox is 2.2kW, this governed by the size of the input flange and shaft

Key features

• Universal mounting design
• Rigid and precise monolithic casing in Cast Iron
• Cylindrical worm shaft with ground and super-finished involute profile (ZI)
• Load capacity and efficiency to BS 721-83 integrated with ISO/CD 14521
• IEC standard motor
• Wide range of accessories
• Easy and functional shaft-mounting design
• Worm wheels of A04 gear reducers and gearmotors made of nickel bronze with controlled phosphor content, in order to achieve improved performance from 6 to 18%, a higher load capacity, greater reliability and more wear resistance
• Compliance with ATEX 94/9/EC directive (UT.D 123)

Please note: This is a gearhead only. If you require a complete Geared Motor, please call for details.
